RD512GG5A4B1

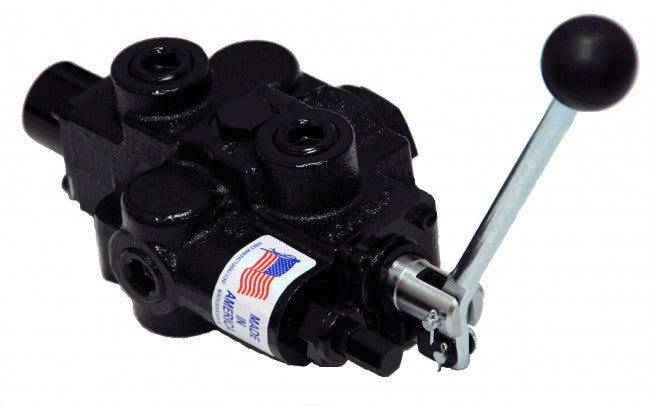

Economical Monoblock construction of high tensile strength gray cast iron; Load check on each spool; 30 GPM max flow; Hard Chrome Plated Spools; Optional 4 Position Float on 1st spool; Differential poppet style relief, adjustable from 1500 to 3000 psi (also available in low pressure version adjustable from 500 to 1500 psi); Power beyond and closed center capability; Reversible Handle; Made in USA

I/O Ports - 3/4" NPT

Work Ports - 1/2" NPT

Spool Type - 4 way/4 pos. Float

Spool Action - Spring Center/Float Detent

GPM - 30
