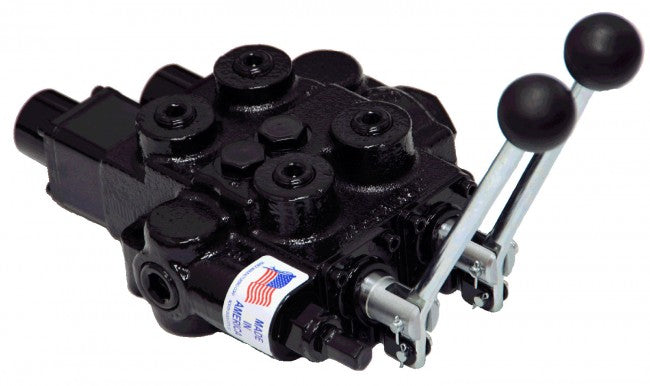

Prince RD5200 Directional Control Valve 25GPM RD522CCEA5A4B1
Regular price
$546.15
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
RD522CCEA5A4B1
Economical Monoblock construction of high tensile strength gray cast iron; Load check on each spool; 25 GPM Max flow; Hard Chrome Plated Spools; Differential poppet style relief, adjustable from 1500 to 3000 psi; Power beyond and closed center capability; Reversible Handle; Made in USA
I/O Ports - #12 SAE
Work Ports - #10 SAE
1st Spool Type - 4 way/4 pos. Float
1st Spool Action - Pressure Release Detent
2nd Spool Type - 4 way/3 pos.
2nd Spool Action - Spring Center
GPM - 25
